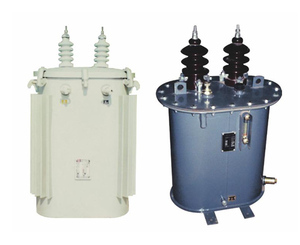

10kV D11 Single-Phase Distribution Transformer
Product description:
Single-phase distribution transformers are small in size and light in weight, allowing them to be placed as close as possible to the load center, shortening the low-voltage network radius and reducing losses.
Product features:
- First, when the power supply radius of a three-phase distribution transformer is too large, the load density is low, and the voltage at the end of the supply line is too low, affecting users' normal electricity use, installing a single-phase distribution transformer at the end of the power supply can shorten the low-voltage power supply radius and solve the problem of low voltage for users.
- Second, when the three-phase distribution transformer is overloaded, selecting an appropriate branch line to install a single-phase distribution transformer according to the load characteristics can transfer the load and solve the capacity expansion problem.
- Third, installing a single-phase distribution transformer to supply power to residents in residential areas without three-phase electricity users can shorten the low-voltage power supply radius and reduce losses.
- Fourth, installing a single-phase distribution transformer to supply power in locations with low load density, wide distribution, and no three-phase electricity users can save investment and solve the problem of being far from the power source.
Installation melthod:
According to user requirements, our company can provide pole-mounted installation structures, which are easy to install and can reduce material costs in the transformer area.
