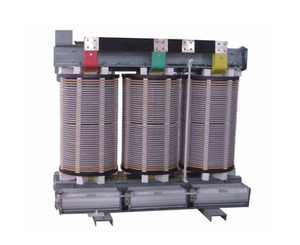

10kV SG(B)10 Series Non-Encapsulated Dry-Type Transformer
Product description:
The SG(B)10 series unencased dry-type transformers use Class C heat-resistant NOMEX paper as insulation, ensuring the product fully meets fire and water resistance requirements and environmental protection standards. It maintains excellent electrical and mechanical properties throughout the entire service life of the dry-type transformer. It is resistant to aging, shrinkage, and compression, and possesses exceptional elasticity, ensuring that even after several years of use, the coils remain structurally compact and can withstand short-circuit stress. Transformer capacities range from 200 to 3150 KVA, with insulation class H.
Product features:
Safe and environmentally friendly with high insulation rating; it will not melt at 250°C; it will not release toxic gases at 750°C; it will not burn or support combustion for 40 minutes after being ignited by an 800°C flame; it is harmless to the human body and does not pollute the environment. This product is recyclable after its lifespan, making it an ideal environmentally friendly product.
Scope of application:
Suitable for harsh environments with high fire protection requirements, large load fluctuations, and dirty and humid conditions. Examples include: airports, subways, power plants, metallurgical plants, hospitals, high-rise buildings, shopping malls, densely populated residential areas, petrochemical plants, nuclear power plants, nuclear submarines, and other important locations. It is the ideal power supply and distribution equipment.
Production Workshop:
